RiserPACK

RiserPACK

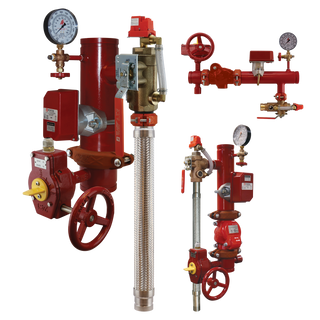

Save money, time, and space with RiserPACK floor control assemblies. AGF's residential and commercial RiserPACK manifolds cut the cost of buying and assembling the individual parts of a section floor control. We preassemble and test every unit in-house to save you time in the field. RiserPACK's configuration reduces the space used by section floor controls by up to 75%. Residential models are available to meet the requirements of NFPA 13R or NFPA 13D. Commercial models meet NFPA 13 requirements. Available with or without pressure relief and can be assembled with additional features to meet custom specifications.

RiserPACK

NFPA 13 Commercial

Commercial RiserPACK floor control assemblies are configured to meet NFPA 13 requirements for wet fire sprinkler systems. Available with or without pressure relief. Can be installed vertically or horizontally.

Features AGF steel riser with TESTanDRAIN, 3-way valve, pressure gauge and grooved connections

8000

Size: 1.25", 1.5", 2", 2.5", 3", 4", 6", 8"
Orifice Size: 3/8", 7/16", 1/2", 17/32", 5/8", 3/4", K 25.2
Connection: Thread x Thread, Thread x Groove, Groove x Groove
K-Factor: K 2.8, K 4.2, K 5.6, K 8.0, K 11.2 ELO, K 14 ESFR, K 25.2
Material: Bronze or Steel
NFPA: 13 Commercial
Flow Switch:
Three Way Valve:
TESTanDRAIN:
Pressure Gauge:
View Details 8000
AGF grooved steel riser manifold with locking pressure relief valve (7000L), Potter flow switch, grooved TESTanDRAIN, 3-way valve and pressure gauge

8011

Size: 1.25", 1.5", 2", 2.5", 3", 4", 6", 8"
Orifice Size: 3/8", 7/16", 1/2", 17/32", 5/8", 3/4", K 25.2
Connection: Thread x Thread, Thread x Groove, Groove x Groove
K-Factor: K 2.8, K 4.2, K 5.6, K 8.0, K 11.2 ELO, K 14 ESFR, K 25.2
Material: Bronze or Steel
NFPA: 13 Commercial
Flow Switch:
Pressure Relief Valve: 7000L
Three Way Valve:
TESTanDRAIN:
Pressure Gauge:
View Details 8011
AGF grooved left drain steel corner riser for commercial applications

8611

Size: 2", 2.5", 3", 4", 6"
Orifice Size: 3/8", 7/16", 1/2", 17/32", 5/8", 3/4", K25.2
Connection: Groove x Groove
K-Factor: K 2.8, K 4.2, K 5.6, K 8.0, K 11.2 ELO, K 14 ESFR, K 25.2
Material: Steel
NFPA: 13 Commercial
Flow Switch:
Pressure Relief Valve: 7000L
Three Way Valve:
TESTanDRAIN:
Pressure Gauge:
View Details 8611
Size 1.25"
1.5"
2"
2.5"
3"
4"
6"
8"		 1.25"
1.5"
2"
2.5"
3"
4"
6"
8"		 2"
2.5"
3"
4"
6"
Orifice Size 3/8"
7/16"
1/2"
17/32"
5/8"
3/4"
K 25.2		 3/8"
7/16"
1/2"
17/32"
5/8"
3/4"
K 25.2		 3/8"
7/16"
1/2"
17/32"
5/8"
3/4"
K25.2
Connection Thread x Thread
Thread x Groove
Groove x Groove		 Thread x Thread
Thread x Groove
Groove x Groove		 Groove x Groove
K-Factor K 2.8
K 4.2
K 5.6
K 8.0
K 11.2 ELO
K 14 ESFR
K 25.2		 K 2.8
K 4.2
K 5.6
K 8.0
K 11.2 ELO
K 14 ESFR
K 25.2		 K 2.8
K 4.2
K 5.6
K 8.0
K 11.2 ELO
K 14 ESFR
K 25.2
Material Bronze or Steel Bronze or Steel Steel
NFPA 13 Commercial 13 Commercial 13 Commercial
Flow Switch
Pressure Relief Valve 7000L 7000L
Three Way Valve
TESTanDRAIN
Pressure Gauge
RiserPACK

Ultimate RiserPACK

Ultimate RiserPACKs offer flexibility to customize your NFPA 13 Commercial floor control assemblies with a butterfly control valve, check valve, flexible drain line, or any combination and are shipped preassembled for fast installation. The Ultimate RiserPACKs are available with Model 8011 RiserPACK or Model 8611 Corner RiserPACK. Alternatively, you can configure your kit with individual components compatible with AGF commercial steel manifolds: Model 8000, Model 8011, and Model 8611.

Features

8611 Ultimate RiserPACKs

Size: 2", 2.5", 3", 4", 6", 8"
Includes AGF Steel RiserPACK: Model 8611
NFPA: 13 (Commercial)
View Details 8611 Ultimate RiserPACKs
Ultimate Riser Assembly with Butterfly Valve, Check Valve and Drain Line

8011 Ultimate RiserPACKs

Size: 2", 2.5", 3", 4", 6", 8"
Includes AGF Steel RiserPACK: Model 8011
NFPA: 13 (Commercial)
View Details 8011 Ultimate RiserPACKs
butterfly control valve and check valve

RiserPACK Build Your Own Kit

Size: 2", 2.5", 3", 4", 6", 8"
NFPA: 13 (Commercial)
View Details RiserPACK Build Your Own Kit
Size 2"
2.5"
3"
4"
6"
8"		 2"
2.5"
3"
4"
6"
8"		 2"
2.5"
3"
4"
6"
8"
Includes AGF Steel RiserPACK Model 8611 Model 8011
NFPA 13 (Commercial) 13 (Commercial) 13 (Commercial)
RiserPACK

RiserPACK with Hose Test

The RiserPACK with Hose Test connection is specifically engineered for floor control applications, available with or without an inline pressure regulating valve. It ensures downstream drain outlets capable of full flow, meeting the criteria for acceptance testing and facilitating future inspection needs.

Features commercial steel fire sprinkler riser with hose test connection

8511

Size: 2", 2.5", 3"
Orifice Size: 3/8", 7/16", 1/2", 17/32", 5/8", 3/4"
Connection: Groove x Groove
K-Factor: K 2.8, K 4.2, K 5.6, K 8.0, 11.2 ELO, 14.0 ESFR
Pressure Relief Valve: 7000L
Flow Switch:
Three Way Valve:
Pressure Gauge:
Hose Test Connection:
View Details 8511

8511Z

Size: 2.5"
Orifice Size: 3/8", 7/16", 1/2", 17/32", 5/8", 3/4"
Connection: Groove x Groove
K-Factor: K 2.8, K 4.2, K 5.6, K 8.0, 11.2 ELO, 14.0 ESFR
Pressure Relief Valve: 7000L
Pressure Reducing Valve:
Flow Switch:
Three Way Valve:
Pressure Gauge:
Hose Test Connection:
View Details 8511Z
Size 2"
2.5"
3"		 2.5"
Orifice Size 3/8"
7/16"
1/2"
17/32"
5/8"
3/4"		 3/8"
7/16"
1/2"
17/32"
5/8"
3/4"
Connection Groove x Groove Groove x Groove
K-Factor K 2.8
K 4.2
K 5.6
K 8.0
11.2 ELO
14.0 ESFR		 K 2.8
K 4.2
K 5.6
K 8.0
11.2 ELO
14.0 ESFR
Pressure Relief Valve 7000L 7000L
Pressure Reducing Valve
Flow Switch
Three Way Valve
Pressure Gauge
Hose Test Connection
RiserPACK

NFPA 13D & 13R

RiserPACK sectional floor control assemblies cut the labor, the cost of buying and assembling individual components of a sectional floor control, and are installed in a fraction of the time.  The compact design saves space, is available with or without pressure relief, and is designed to meet NFPA 13D or NFPA 13R standards for wet fire sprinkler systems.

Features 1" bronze NFPA 13D residential riser manifold with threaded connections

8000 13D

Size: 1"
Orifice Size: 3/8", 7/16", 1/2"
Connection: Thread x Thread
NFPA: 13D
K-Factor: K 2.8, K 4.2, K 5.6
Material: Bronze
Flow Switch:
Pressure Gauge:
Stud Mounting Bracket: Optional
View Details 8000 13D
Model 8011 NFPA 13d riser assembly. Includes pressure relief valve.

8011 13D

Size: 1"
Orifice Size: 3/8", 7/16", 1/2"
Connection: Thread x Thread
NFPA: 13D
Pressure Relief Valve: 7000L
K-Factor: K 2.8, K 4.2, K 5.6
Material: Bronze
Flow Switch:
Pressure Gauge:
Stud Mounting Bracket: Optional
View Details 8011 13D
AGF bronze 13R residential riser with pressure gauge, 3-way valve, and threaded connections

8000 13R

Size: 1.25", 1.5", 2"
Orifice Size: 3/8", 7/16", 1/2"
Connection: Thread x Thread, Thread x Groove, Groove x Groove
NFPA: 13R
K-Factor: K 2.8, K 4.2, K 5.6
Material: Bronze
Flow Switch:
Pressure Gauge:
View Details 8000 13R
AGF bronze riser with pressure gauge, 3-way valve, and pressure relief valve, and treaded connections

8011 13R

Size: 1.25", 1.5", 2"
Orifice Size: 3/8", 7/16", 1/2"
Connection: Thread x Thread, Thread x Groove, Groove x Groove
NFPA: 13R
Pressure Relief Valve: 7000L
K-Factor: K 2.8, K 4.2, K 5.6
Material: Bronze
Flow Switch:
Pressure Gauge:
View Details 8011 13R
Size 1" 1" 1.25"
1.5"
2"		 1.25"
1.5"
2"
Orifice Size 3/8"
7/16"
1/2"		 3/8"
7/16"
1/2"		 3/8"
7/16"
1/2"		 3/8"
7/16"
1/2"
Connection Thread x Thread Thread x Thread Thread x Thread
Thread x Groove
Groove x Groove		 Thread x Thread
Thread x Groove
Groove x Groove
NFPA 13D 13D 13R 13R
Pressure Relief Valve 7000L 7000L
K-Factor K 2.8
K 4.2
K 5.6		 K 2.8
K 4.2
K 5.6		 K 2.8
K 4.2
K 5.6		 K 2.8
K 4.2
K 5.6
Material Bronze Bronze Bronze Bronze
Flow Switch
Pressure Gauge
Stud Mounting Bracket Optional Optional
