DRYTEST

One Valve. Fewer Connections. Faster Installation.

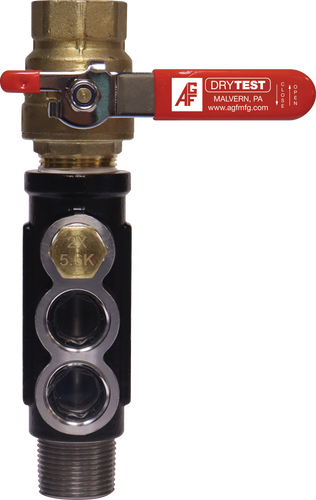

Simplify dry and preaction sprinkler system trip testing with a single, compact solution. The AGF DRYTEST Model 5600 integrates both the test connection valve and orifice manifold into one purpose-built assembly. Designed to streamline required trip testing, it gives inspectors an efficient, accessible testing point while helping contractors reduce installation complexity, connection counts, and overall labor time. Built to meet the requirements of NFPA 13, Section 8.2.4.4, the Model 5600 delivers reliable performance without adding unnecessary components to the system.

Simplified Installation

Traditional trip test assemblies rely on multiple components and field-installed connections. The Model 5600 eliminates that complexity by combining essential functions into a single valve.

Reducing the number of parts and connections, it helps:

• Minimize potential leak points
• Shorten installation time
• Create a cleaner, more compact system layout

Inspector-Friendly Design

The Model 5600 is engineered to make testing easier and more efficient in the field.

• At-the-valve testing allows inspectors to perform trip tests without activating multiple valves
• An integrated sight glass provides clear visual confirmation of water flow
• Ensures tests are completed accurately and with confidence

The valve includes a precision brass orifice insert matched to system requirements.

Key Benefits

• Combines test connection valve and orifice manifold in one unit
• Supports dry and preaction sprinkler system trip testing
• Enables convenient, at-the-valve testing
• Reduces system connections and installation complexity
• Helps lower labor time and installation costs
• Provides visual flow confirmation with an integrated sight glass
• Features a brass orifice available in multiple options for accurate testing
• Creates a cleaner, more efficient system layout

Orifice Options

Available with brass orifice in the following flow rates:

• 5.6K
• 5.6K × 2
• 8.0K
• 8.0K × 2

Built for the Field

The DRYTEST Model 5600 was developed with both contractors and inspectors in mind. Its compact footprint, reduced connection count, and built-in flow validation simplify installation and streamline testing—delivering a practical, dependable solution for required trip test assemblies.
